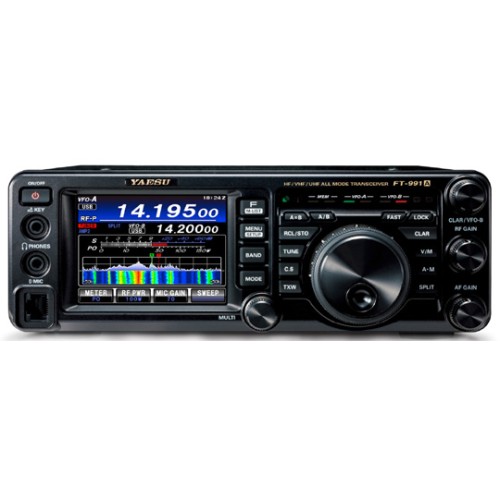

Yaesu FT-991A NEW ALL-BAND, MULTIMODE PORTABLE TRANSCIEVER

De FT-991a is de volgende generatie in alle modi, alle banden MF/HF/VHF/UHF transceiver met C4FM (System Fusion) Digitale vermogen.

De FT-991a is voorzien van multi-mode operatie op CW, AM, FM, SSB, en Digitale Modi (Packet, PSK31, RTTY en C4FM), met 100 Watt HF Capability (50 Watt VHF/UHF).
De FT-991a bevat nu een hoge resolutie full-color 9cm TFT touch panel voor superieure bruikbaarheid en de zichtbaarheid,  Geïntegreerd High Speed ​​Spectrum scope met ASC (Automatic Spectrum-scope controle) werd ingebouwd.


• 9cm TFT-kleurendisplay
  De FT-991 kon de functies niet gemakkelijker maken dan binnen je handbereik met een 9cm Full Color TFT display voor Superior Operability en zichtbaarheid.
• 100 Watt of Solid Performances
  De RF versterker in de FT-991a levert een schone en stevige 100 Watt Operating Power (50 Watt VHF / UHF) en wordt gecombineerd met een grote warmteafleider en geforceerde automatische ventilator om de levensduur te verhogen en oververhitting te voorkomen.
• Compact, lichtgewicht en draagbaar
  De FT-991a wordt geleverd in een compact, lichtgewicht pakket geschikt voor draagbare-, mobiele- en basisinstallaties. Hij meet 22.5cm (B) x 7,5 cm (H) x 25cm (L) en weegt slechts 4,40 kilogram.
  Deze robuuste full featured mobiele / draagbare radio is klaar om te gaan waar en wanneer u wilt!
• Interne Automatische Antenne Tuner
  Interne High Speed ​​Automatic Antenne Tuner is in het geheel opgenomen. De antenne tuner maakt gebruik van een LC-switching netwerk met een grote capaciteit die 100 channel geheugen heeft.
  De tuning data wordt automatisch opgeslagen om het afstemmen te verminderen bij het wisselen van frequentie.
• Hoge nauwkeurigheid TCXO
  +/- 0,5 ppm met hoge resolutie DDS/PLL lokale Oscillator werd opgenomen als onderdeel van het standaardpakket.
• USB Mogelijkheid
  De FT-991 kan worden aangesloten op een computer met een USB-kabel voor CAT controle en firmware-updates, of het gebruik van een optionele SCU-17-interface-eenheid om USB audio in/uit, TX Controle (PTT, Key, Shift) te ondersteunen.

The FT-991A is the next generation in all mode, all band MF/HF/VHF/UHF transceiver with C4FM (System Fusion) Digital capability. The FT-991A includes multi-mode operation on CW, AM, FM, SSB, and Digital Modes (Packet, PSK31, RTTY and C4FM), with 100 Watts of HF/50mhz Capability (50 Watts VHF/UHF).

The New FT-991A now includes a high-resolution full color 3.5" TFT Touch panel for superior operability and visibility, incorporating a High Speed Spectrum and High Resolution real-time scope with ASC (Automatic Spectrum-scope control) built right in.

The FT-991A is designed for the most competitive operating situations, with a suite of new features to enhance the experience. Whether you primarily operate at home, mobile or in the field, the FT-991 will provide outstanding fundamental performance plus give you easy access to the full range of exciting modes available on the ham bands today.

Real-time Spectrum Scope with Automatic Scope Control (ASC)
The new dynamic real-time spectrum scope gives radio operators the ability to graphically view the location of signals on the band while they listen to the received audio allowing them to quickly move to the desired signal. The strength of signals on the band can readily be seen on the Multi-color waterfall display. Chronological order color differentiation allows operators to easily recognize weak signals at a glance; signals that might otherwise be missed on the spectrum scope.

Advanced Spectrum Scope with ASC (Automatic Spectrum-Scope Control) located just below the LCD display gives the operator all the information for comfortable QSO on the DXing scene.
Multi-color waterfall display
The FT-991A now includes a Real-time Multi-colored waterfall display that enables you to quickly and easily identify and pick out signals without the need to mute the receive audio.
State of the art 32-bit Digital Signal Processing System
Recognizing an all-important Golden Rule Amateur Radio - “You cannot work them if you cannot hear them”– the FT 991 features a rugged state-of-the-art highly balanced receiver circuit configuration. The high-speed floating point TMS320C6746 DSP chip (3000 MIPS / 2250 MFLOPS) from Texas Instruments used in the receiver design guarantees excellent interference rejection with actual signals under real-world conditions, not only on HF but also in the VHF and UHF bands.
3kHz Roofing Filter for enhanced performance
The FT-991A now includes a 3Khz roofing filter for the triple conversion receiver that effective attenuates interfering signals and enables outstanding performance while still producing high quality audio.
3.5 Inch Full Color TFT
The FT-991 could not provide functions easier than at your fingertips with a 3.5" Full Color TFT Display for Superior Operability and Visibility.
USB Capable
The FT-991 can be connected to a computer using a USB cable for CAT control and firmware updates, or the use of an integrated SCU-17 Interface Unit to support USB Audio In/Out, TX Control (PTT, Key, Shift).
100 Watts of Solid Performance
The RF Amplifier in the FT-991 provides a clean and solid 100 Watts of Operating Power (50 Watts VHF/UHF) and is combined with a large heat-sink and forced air automatic cooling fan to increase operating time and prevent overheating.
Compact, Lightweight & Portable
The FT-991 Comes in a compact, lightweight package suitable for portable, mobile and base installations. Measuring 8.8"(W) x 3" (H) x 9.9" (L) at just 9.7 pounds this robust full featured mobile/portable radio is ready to go when and where you are!
Internal Automatic Antenna Tuner
Internal High Speed Automatic Antenna Tuner included in the package. The antenna tuner uses a LC switching network that has a large capacity 100 channel memory. The tuning data is automatically memorized to reduce tuning time when changing frequency.
High Accuracy TCXO
+/-0.5PPM High Resolution DDS/PLL local Oscillator included as part of the standard package.
Specifications
Frequency Ranges: RX 30 kHz - 56 MHz, 118 MHz - 164 MHz, 420 MHz - 470 MHz (specified performance, amateur bands only)
TX 1.8 MHz - 54 MHz, 144 MHz - 148 MHz, 430 MHz - 450 MHz (amateur bands only)
Circuit Type: Triple-Conversion Superheterodyne: SSB/CW/AM
Double-Conversion Superheterodyne: FM/C4FM
Modulation Type: A1A(CW), A3E(AM), J3E(LSB, USB), F7W(C4FM), F3E(FM),
F1D(PACKET), F2D(PACKET)
Power Output: SSB/CW/FM AM Carrier
160- 6 Meters: 100 W 25 W
2 Meters/70 Centimeters: 50 W 12.5 W
Case Size(W x H x D): 9.0" x 3.2" x 9.3" (w/o knob and connector)
Weight: 9.5 lb
Qty in Master Carton: 4
Warranty: 1 Year
Supplied Accessories
Hand Microphone (MH-31A8J)
DC Power Cord
Spare Fuse (25A)
Operating Manual
Warranty Card
