PHILIPS 902A | ||
---|---|---|

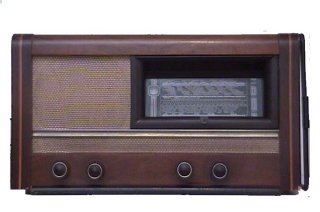

Click on picture for right scale |
Banden:
LG: 1150-2000 m MG: 190-580 m KG: 13-45m 50-160m |
Buizen:
EBF2 EBF2 AZ1 ECH3 EL3 EM4 |
Manufactured: The Netherlands,
Bands: LW 1150-2000m, MW 190-580m, SW 13-51m, 50-160m
Tubes:EBF2, EBF2, AZ1, ECH3, EL3, EM4
Dimensions:

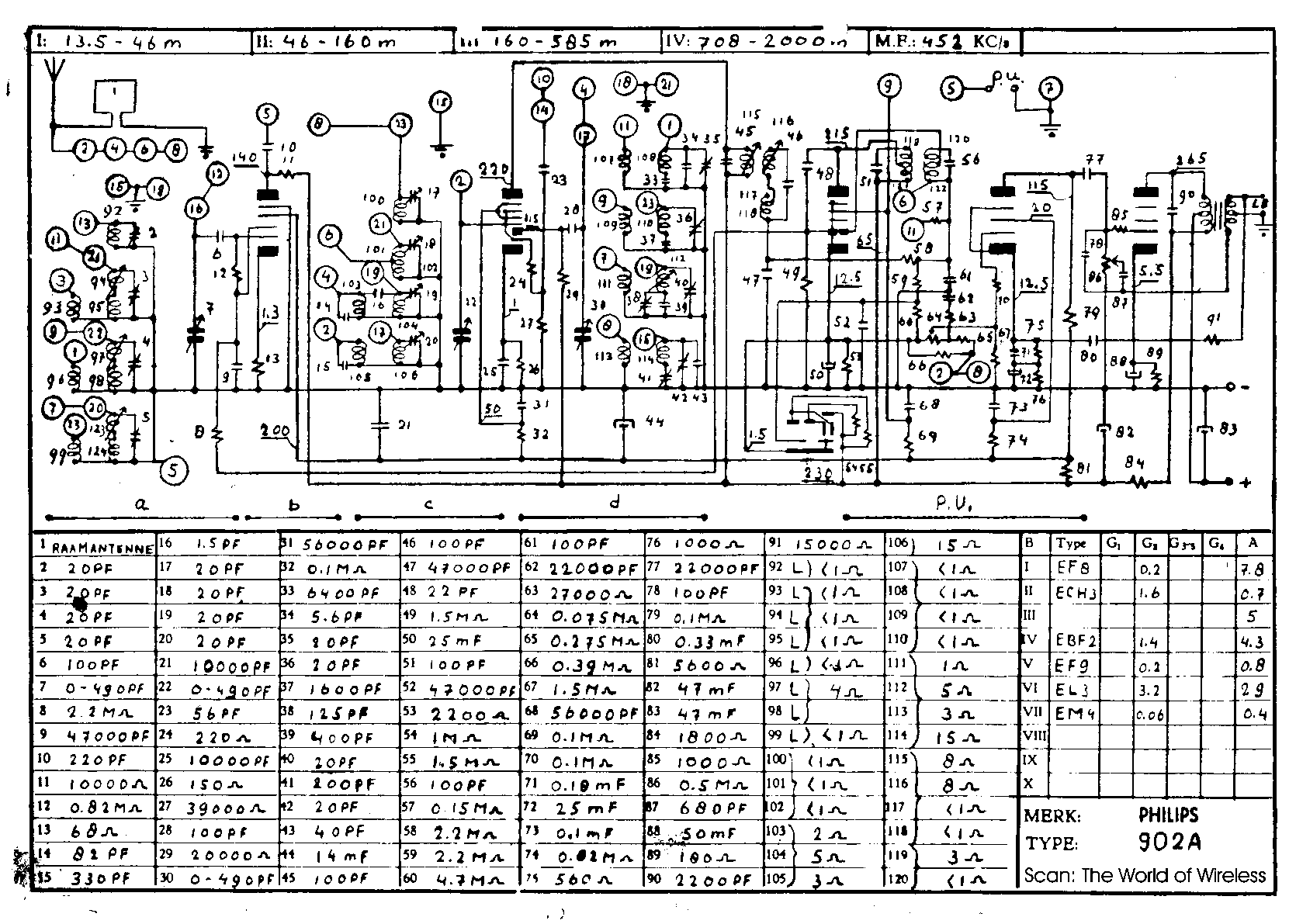

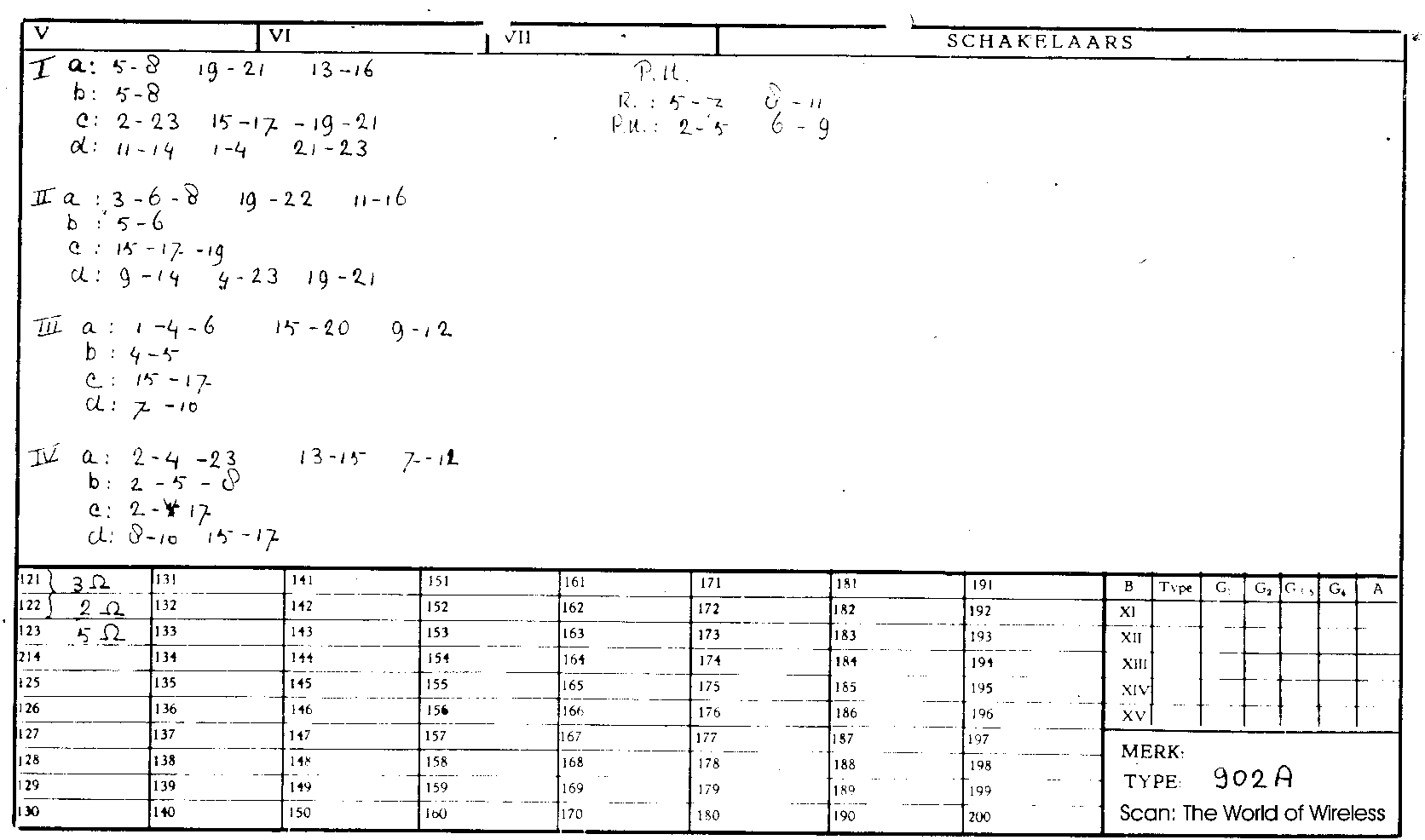

Schema Philips 902A
