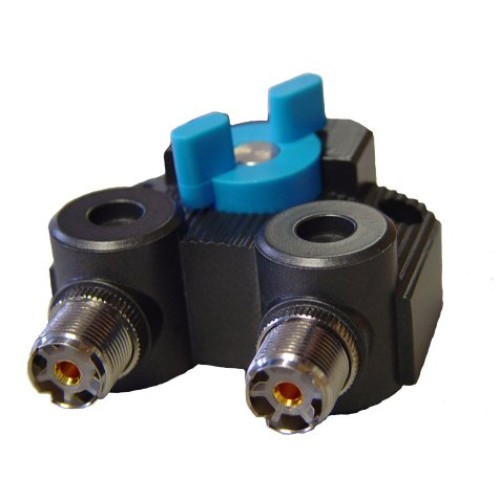

AV-2SW2M coaxschakelaar-2 voudig

Type: AV-SW2M

Categorie: (TRX/RX)

Short description: 2-Position Coaxial Antenna Switch.
Input: UHF-Female (SO-239).
Output: 2x UHF-Female (SO-239) Long description: GENERAL:
2-Position Coaxial Antenna Switch

FEATURES, FUNCTIONS AND SPECIFICATIONS:

FREQUENCY RANGE:
DC ~ 1GHZ

CONNECTOR TYPE:
Input Port: UHF-Female (SO-239).
Output Port: 2x UHF-Female (SO-239)

POWER RANGE:
DC ~ 30MHz: 2KW
30MHz ~ 200MHz: 1KW
200MHz ~ 500MHz: 500W
500MHz ~ 1GHz: 250W

INSERTION LOSS:
DC ~ 500MHz: ≤0.05dB
500MHz ~ 1GHz: ≤0.10dB

OUTPUT PORT ISOLATION:
DC ~ 500MHz: 70.0dB
500MHz ~ 1GHz: 60.0dB

VSWR:
DC ~ 500MHz: ≤1.05
500MHz ~ 1GHz: ≤1.15

PACKING INCLUDES:
Antenna Switch
Packing dimensions  LxWxH : 18 x 10 x 5 cm.

Packing weight: 445 gr.
