Is een antenne voor een ontvanger.

DA-3200 Discone antenna 25 MHz - 3000 MHz

25 MHz – 3000 MHz
Rugged 16 element discone.
Ideal for professional, surveillance and monitoring applications.
Ultra wideband design providing continuous coverage from 25 MHz to 3000 MHz.
Designed and manufactured to exacting standards.
Specifications Vertical radiation pattern
Return loss chart
Supplied with 15m of low loss 5D-2V coaxial cable.
The ultra wideband discone antenna

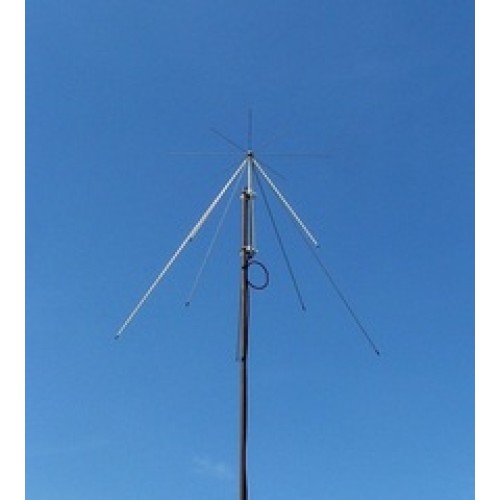

The AOR DA3200 is a 16 element (stainless steel), base, omnidirectional discone receiving antenna covering 25 to 3000 MHz. The antenna is approximately 1.12m. It comes with two U bolts to mount the antenna to a mast (not included). It includes 15 m of low-loss 5D-2V 50 ohm coax lead-in. This supplied lead-in features an N plug for the antenna end and BNC for the radio end. This robustly built antenna has rated wind velocity of up to 170 kmh. (Mast shown is not included). Please note that this antenna is not for transmit applications.
