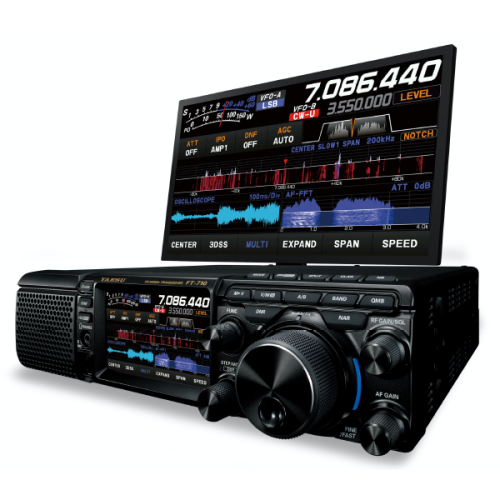

YAESU  FT-710 AESS.  HF/6m/4m* 100W SDR Transceiver,

YAESU is excited to announce a new HF/50MHz 100W SDR Transceiver – FT-710 AESS.
The new FT-710 AESS is a compact design yet provides 100W output, utilizing the advanced digital RF technology
introduced in the FTDX101 and FTDX10 series.
A few of the remarkable features of the new FT-710 AESS are:
- YAESU Unmatched SDR technology emphasizes the Receiving Performance
- Band Pass Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
- RF Front-End design with the 250MHz HRDDS (High Resolution Direct Digital Synthesizer) enables
Phenomenal Multi-Signal Receiving Characteristics
- QRM rejection by the dual core 32-bit high speed floating decimal point DSP for SHIFT/ WIDTH/ NOTCH/
CONTOUR/ APF (Audio Peak Filter)/ DNR (Digital Noise Reduction)/ NB (Noise Blanker) and 3-Stage
Parametric Equalizer
- High Resolution 4.3-inch TFT Color Touch Panel Display
- 3DSS (3-Dimensional Spectrum Stream)
- VMI LED (VFO Mode Indicator) placed around the VFO dial shows the current operating mode (VFO-A, VFOB,
Memory Mode and Clarifier/Split Operation)
- “PRESET” Mode Function most suitable for FT8 Operation
- AESS: Acoustic Enhanced Speaker System with SP-40 creates the high-fidelity audio output
- External Display Connection Terminal (DVI-D)
- Built-in High Speed Automatic Antenna Tuner with 100 channel memory
- Support the FC-40 Auto Antenna Tuner
- SD Memory Card can be used to save the communication record, transceiver setting, the memory contents,
screen capture images, and to update the firmware
- Two (2) USB Ports (Type-A and Type-B)
- Other essential features such as CW ZIN and SPOT, IPO (Intercept Point Optimization), and Remote Operation
with Network Remote Control System to name a few

The new FT-710 AESS is available September 2022. Once we are ready to accept your orders, we will make an
official announcement. Please be ready for this forthcoming exciting new HF radio!

Specifications:___________________________________________________________________________
TX Frequency Range: 1.8MHz band – 50MHz band (Amateur bands only)
70MHz – 70.5MHz (UK Amateur bands only)
RX Frequency Range: 30KHz – 75MHz (Operating)
1.8MHz – 29.699999MHz (Specified performance, Amateur bands only)
50MHz – 53.999999MHz (Specified performance, Amateur bands only)
70MHz – 70.499999MHz (Specified performance, UK Amateur bands only)
Emission Modes: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM)
Supply Voltage: DC13.8V ±15%
Power Output: 5 - 100W (5 – 25W AM Carrier)
Dimensions (W x H x D): 9.4” x 3.1” x 9.7” (239 x 80 x 247mm)
Weight (Approx.): 9.92lbs (4.5kg)
